NZSP-1_01 Light arrow SS13-L LED

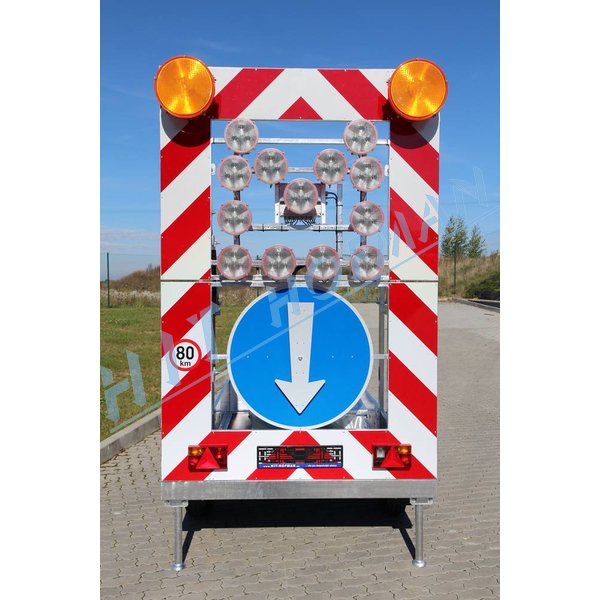

Trailer with the light arrow SS13-L LED supplied from one battery 12V/180Ah keeps flashing non-stop for up to 6 days

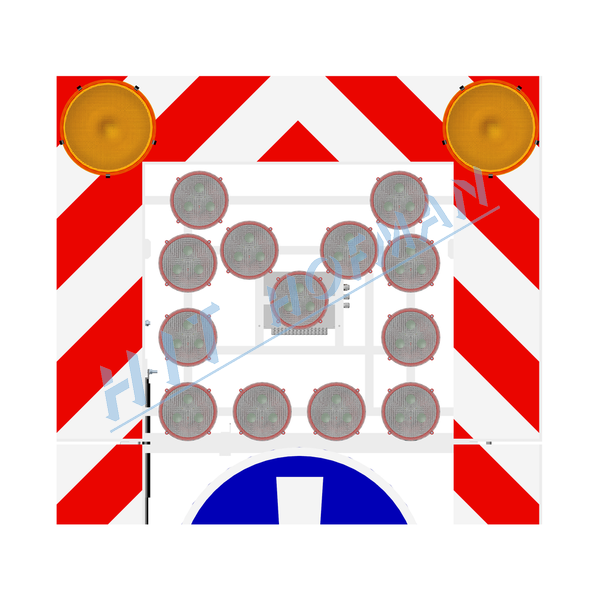

Light arrow is a set to be installed on warning boards for indicating road works. This light arrow is also described as Light arrow and cross type B, warning arrow or signalling arrow.
- 2 warning LED lamps ø300mm EN 12352 L9H
- 13 LED lamps ø200mm EN 12352 L8H
- electronics automatically reduce lamp luminous intensity at night and includes reverse polarity protection
- moreover, the electronics protect the battery from deep discharge by disconnecting the light arrow symbols and possibly also the upper warning lamps depending on the current battery status
- the light arrow symbols are switched on automatically depending on the position of the white arrow on the blue round traffic sign

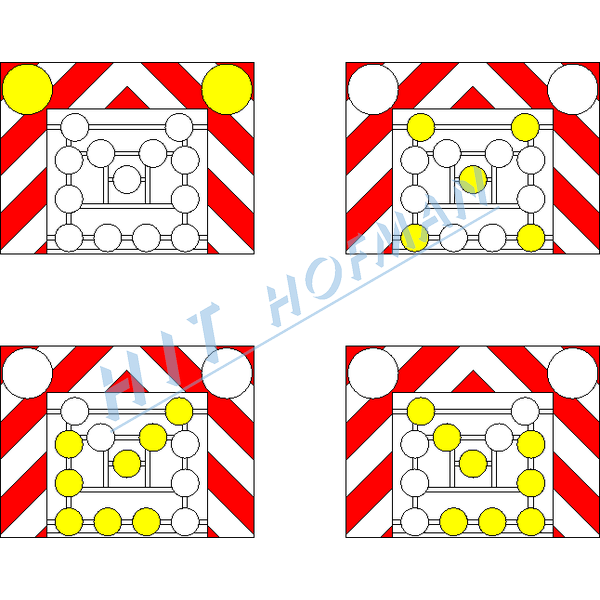

- the light arrow has the following modes: arrow to the left, arrow to the right and cross
Technical data
| Power supply | 12/24V= |
| Current consumption 12V= | day 1,76A night 0,65A |
| Average consumption 12V= | 30Ah / 24 hours |
| Current consumption 24V= | day 1,0A night 0,37A |
| Average consumption 24V= | 16,3Ah / 24 hours |
| Flashing frequency | 60/min. |
| Weight | 15kg |
Products
| Order no. | Product name | Quantity | |
|---|---|---|---|
| 1-035-005025 | NZSP-1_01 Light arrow SS13-L LED | pc. | Price inquiry |
Accessories
| Order no. | Product name | Quantity | |
|---|---|---|---|
| 1-035-005520 | NZSP-1_01 Extension of light arrow to SS15 LED |
pc. | Price inquiry |
| 1-035-200010 | NZSP-1_01 Motor-operated arrow rotation MOS 12V |
pc. | Price inquiry |
| 1-035-201010 | NZSP-1_01 Motor-operated board lifting MZS 12V |
pc. | Price inquiry |
| 1-035-202010 | NZSP-1_01 Motor-operated board lifting and arrow rotation MZS+MOS 12V |
pc. | Price inquiry |
| 1-035-020200 | Wireless remote control SS15-2_02 MZS RADIO |
pc. | Price inquiry |
